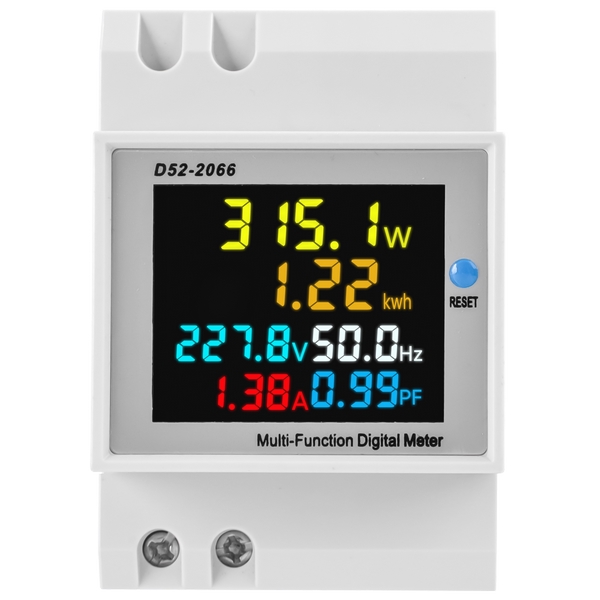

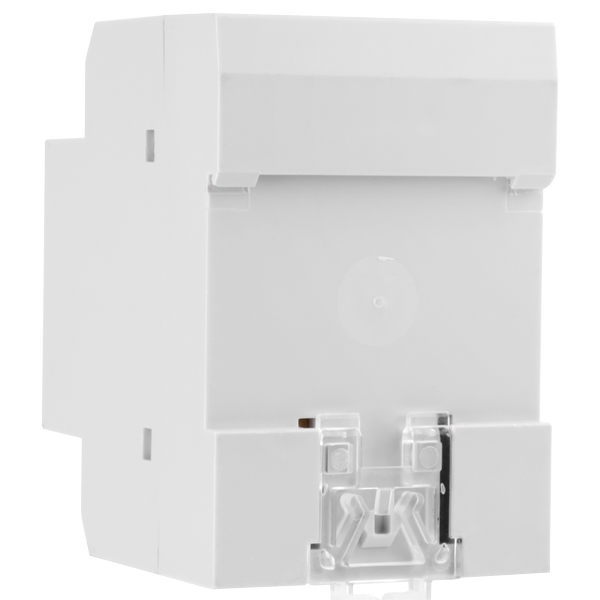

G52-2066型导轨式数显表

G52-2066型导轨式数显表应用方法：

1、将测量电压连接到1和2端子；

Connect the measure voltage tothe 1 and 2 terminal；

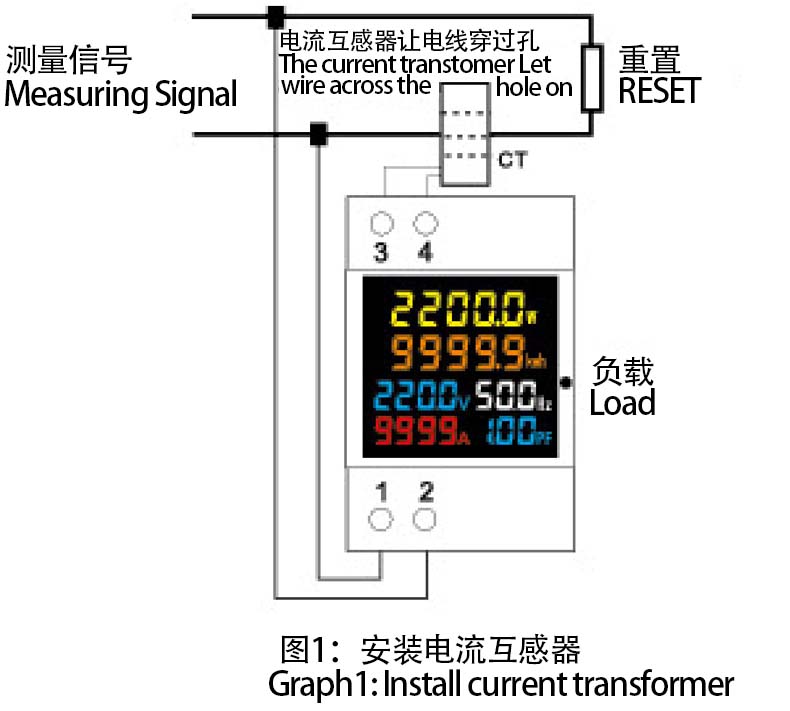

2、仪表与内部电流互感器的连接，如图1所示。使电线穿过仪表上的孔，并任意选择方

向。

Connections of meter with intemal current transformer as graph 1.Make the wire

through the hole in the meter and the direction chose arbitrarily.

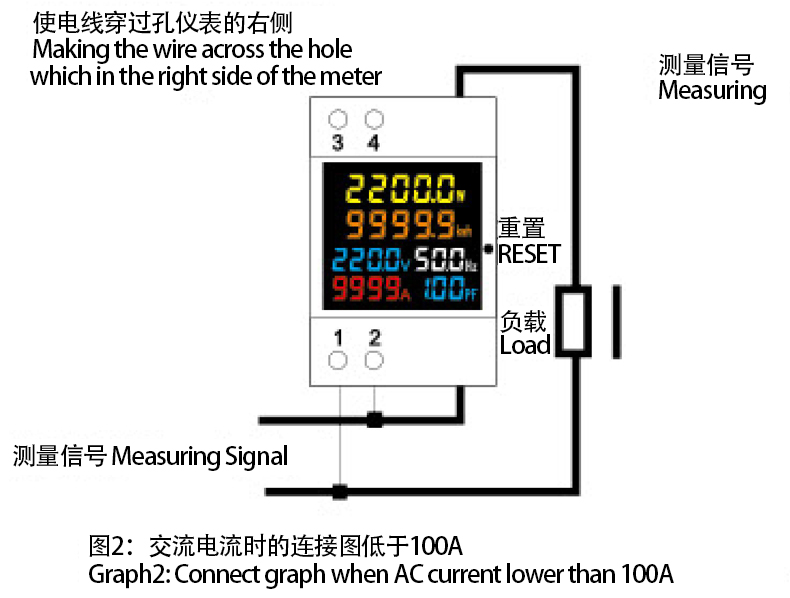

3、仪表与外部电流互感器的连接，如图2所示。将电线穿过仪表上的孔，并将二次变压

器的两根电线连接到3和4端子。

Connections of meter with external curent transformer as graph 2.Make the wire

through the hole in the meter,and connect the two wires ofthe secondary transformer

to the 3 and 4 terminal.

4、通电时，仪表显示测量参数。

When power on,the meter display the measure parameters.

5.通电时，可以持续按下SAMCK按钮5秒，然后释放按钮时电能将为零并开始累积。在

断电时，电表可以节省电能的价值，并在下一次电表通电时继续累积数据。

When power on,you can press the button of SAM.CKlastfor 5 seconds,then the

electric energy wllto be zero and start to cumulate when release the button.And

when power off,the metercan savethe value ofelectric energy and go on cumulatingdata

when the meter power-on next.

G52-2066型导轨式数显表技术参数：
